Grafana는 모니터링을 시각화하기 위한 도구입니다. helm을 이용하여 설치하므로, helm이 설치되어 있다는 것을 전제로 합니다.
1. 설치 방법
1. helm으로 grafana 설치
helm install --name air-grafana --namespace monitoring -f values.yaml stable/grafana
이때 사용한 values.yaml에서 가장 중요한 것은 외부 포트 오픈을 위해, service: NodePort를 지정해주었다는 것입니다. 또한 adminUser와 adminPassword를 지정해주어야 합니다.
rbac:
create: true
pspEnabled: true
pspUseAppArmor: true
namespaced: false
extraRoleRules: []
# - apiGroups: []
# resources: []
# verbs: []
extraClusterRoleRules: []
# - apiGroups: []
# resources: []
# verbs: []
serviceAccount:
create: true
name:
nameTest:
# annotations:
replicas: 1
## See `kubectl explain poddisruptionbudget.spec` for more
## ref: https://kubernetes.io/docs/tasks/run-application/configure-pdb/
podDisruptionBudget: {}
# minAvailable: 1
# maxUnavailable: 1
## See `kubectl explain deployment.spec.strategy` for more
## ref: https://kubernetes.io/docs/concepts/workloads/controllers/deployment/#strategy
deploymentStrategy:
type: RollingUpdate
readinessProbe:
httpGet:
path: /api/health
port: 3000
livenessProbe:
httpGet:
path: /api/health
port: 3000
initialDelaySeconds: 60
timeoutSeconds: 30
failureThreshold: 10
## Use an alternate scheduler, e.g. "stork".
## ref: https://kubernetes.io/docs/tasks/administer-cluster/configure-multiple-schedulers/
##
# schedulerName: "default-scheduler"
image:
repository: grafana/grafana
tag: 6.5.0
pullPolicy: IfNotPresent
## Optionally specify an array of imagePullSecrets.
## Secrets must be manually created in the namespace.
## ref: https://kubernetes.io/docs/tasks/configure-pod-container/pull-image-private-registry/
##
# pullSecrets:
# - myRegistrKeySecretName
testFramework:
enabled: true
image: "dduportal/bats"
tag: "0.4.0"
securityContext: {}
securityContext:
runAsUser: 472
fsGroup: 472
extraConfigmapMounts: []
# - name: certs-configmap
# mountPath: /etc/grafana/ssl/
# subPath: certificates.crt # (optional)
# configMap: certs-configmap
# readOnly: true
extraEmptyDirMounts: []
# - name: provisioning-notifiers
# mountPath: /etc/grafana/provisioning/notifiers
## Assign a PriorityClassName to pods if set
# priorityClassName:
downloadDashboardsImage:
repository: appropriate/curl
tag: latest
pullPolicy: IfNotPresent
downloadDashboards:
env: {}
## Pod Annotations
# podAnnotations: {}
## Pod Labels
# podLabels: {}
podPortName: grafana
## Deployment annotations
# annotations: {}
## Expose the grafana service to be accessed from outside the cluster (LoadBalancer service).
## or access it from within the cluster (ClusterIP service). Set the service type and the port to serve it.
## ref: http://kubernetes.io/docs/user-guide/services/
##
service:
type: NodePort
nodePort: 30300
port: 80
targetPort: 3000
# targetPort: 4181 To be used with a proxy extraContainer
annotations: {}
labels: {}
portName: service
ingress:
enabled: false
annotations: {}
# kubernetes.io/ingress.class: nginx
# kubernetes.io/tls-acme: "true"
labels: {}
path: /
hosts:
- chart-example.local
## Extra paths to prepend to every host configuration. This is useful when working with annotation based services.
extraPaths: []
# - path: /*
# backend:
# serviceName: ssl-redirect
# servicePort: use-annotation
tls: []
# - secretName: chart-example-tls
# hosts:
# - chart-example.local
resources: {}
# limits:
# cpu: 100m
# memory: 128Mi
# requests:
# cpu: 100m
# memory: 128Mi
## Node labels for pod assignment
## ref: https://kubernetes.io/docs/user-guide/node-selection/
#
nodeSelector: {}
## Tolerations for pod assignment
## ref: https://kubernetes.io/docs/concepts/configuration/taint-and-toleration/
##
tolerations: []
## Affinity for pod assignment
## ref: https://kubernetes.io/docs/concepts/configuration/assign-pod-node/#affinity-and-anti-affinity
##
affinity: {}
extraInitContainers: []
## Enable an Specify container in extraContainers. This is meant to allow adding an authentication proxy to a grafana pod
extraContainers: |
# - name: proxy
# image: quay.io/gambol99/keycloak-proxy:latest
# args:
# - -provider=github
# - -client-id=
# - -client-secret=
# - -github-org=<ORG_NAME>
# - -email-domain=*
# - -cookie-secret=
# - -http-address=http://0.0.0.0:4181
# - -upstream-url=http://127.0.0.1:3000
# ports:
# - name: proxy-web
# containerPort: 4181
## Enable persistence using Persistent Volume Claims
## ref: http://kubernetes.io/docs/user-guide/persistent-volumes/
##
persistence:
type: pvc
enabled: false
# storageClassName: default
accessModes:
- ReadWriteOnce
size: 10Gi
# annotations: {}
finalizers:
- kubernetes.io/pvc-protection
# subPath: ""
# existingClaim:
initChownData:
## If false, data ownership will not be reset at startup
## This allows the prometheus-server to be run with an arbitrary user
##
enabled: true
## initChownData container image
##
image:
repository: busybox
tag: "1.30"
pullPolicy: IfNotPresent
## initChownData resource requests and limits
## Ref: http://kubernetes.io/docs/user-guide/compute-resources/
##
resources: {}
# limits:
# cpu: 100m
# memory: 128Mi
# requests:
# cpu: 100m
# memory: 128Mi
# Administrator credentials when not using an existing secret (see below)
adminUser: admin
adminPassword: admin#
# Use an existing secret for the admin user.
#admin:
# existingSecret: ""
# userKey: admin
# passwordKey: admin
## Define command to be executed at startup by grafana container
## Needed if using `vault-env` to manage secrets (ref: https://banzaicloud.com/blog/inject-secrets-into-pods-vault/)
## Default is "run.sh" as defined in grafana's Dockerfile
# command:
# - "sh"
# - "/run.sh"
## Use an alternate scheduler, e.g. "stork".
## ref: https://kubernetes.io/docs/tasks/administer-cluster/configure-multiple-schedulers/
##
# schedulerName:
## Extra environment variables that will be pass onto deployment pods
env: {}
## The name of a secret in the same kubernetes namespace which contain values to be added to the environment
## This can be useful for auth tokens, etc
envFromSecret: ""
## Sensible environment variables that will be rendered as new secret object
## This can be useful for auth tokens, etc
envRenderSecret: {}
## Additional grafana server secret mounts
# Defines additional mounts with secrets. Secrets must be manually created in the namespace.
extraSecretMounts: []
# - name: secret-files
# mountPath: /etc/secrets
# secretName: grafana-secret-files
# readOnly: true
## Additional grafana server volume mounts
# Defines additional volume mounts.
extraVolumeMounts: []
# - name: extra-volume
# mountPath: /mnt/volume
# readOnly: true
# existingClaim: volume-claim
## Pass the plugins you want installed as a list.
##
plugins: []
# - digrich-bubblechart-panel
# - grafana-clock-panel
## Configure grafana datasources
## ref: http://docs.grafana.org/administration/provisioning/#datasources
##
datasources: {}
# datasources.yaml:
# apiVersion: 1
# datasources:
# - name: Prometheus
# type: prometheus
# url: http://prometheus-prometheus-server
# access: proxy
# isDefault: true
## Configure notifiers
## ref: http://docs.grafana.org/administration/provisioning/#alert-notification-channels
##
notifiers: {}
# notifiers.yaml:
# notifiers:
# - name: email-notifier
# type: email
# uid: email1
# # either:
# org_id: 1
# # or
# org_name: Main Org.
# is_default: true
# settings:
# addresses: an_email_address@example.com
# delete_notifiers:
## Configure grafana dashboard providers
## ref: http://docs.grafana.org/administration/provisioning/#dashboards
##
## `path` must be /var/lib/grafana/dashboards/<provider_name>
##
dashboardProviders: {}
# dashboardproviders.yaml:
# apiVersion: 1
# providers:
# - name: 'default'
# orgId: 1
# folder: ''
# type: file
# disableDeletion: false
# editable: true
# options:
# path: /var/lib/grafana/dashboards/default
## Configure grafana dashboard to import
## NOTE: To use dashboards you must also enable/configure dashboardProviders
## ref: https://grafana.com/dashboards
##
## dashboards per provider, use provider name as key.
##
dashboards: {}
# default:
# some-dashboard:
# json: |
# $RAW_JSON
# custom-dashboard:
# file: dashboards/custom-dashboard.json
# prometheus-stats:
# gnetId: 2
# revision: 2
# datasource: Prometheus
# local-dashboard:
# url: https://example.com/repository/test.json
# local-dashboard-base64:
# url: https://example.com/repository/test-b64.json
# b64content: true
## Reference to external ConfigMap per provider. Use provider name as key and ConfiMap name as value.
## A provider dashboards must be defined either by external ConfigMaps or in values.yaml, not in both.
## ConfigMap data example:
##
## data:
## example-dashboard.json: |
## RAW_JSON
##
dashboardsConfigMaps: {}
# default: ""
## Grafana's primary configuration
## NOTE: values in map will be converted to ini format
## ref: http://docs.grafana.org/installation/configuration/
##
grafana.ini:
paths:
data: /var/lib/grafana/data
logs: /var/log/grafana
plugins: /var/lib/grafana/plugins
provisioning: /etc/grafana/provisioning
analytics:
check_for_updates: true
log:
mode: console
grafana_net:
url: https://grafana.net
## LDAP Authentication can be enabled with the following values on grafana.ini
## NOTE: Grafana will fail to start if the value for ldap.toml is invalid
# auth.ldap:
# enabled: true
# allow_sign_up: true
# config_file: /etc/grafana/ldap.toml
## Grafana's LDAP configuration
## Templated by the template in _helpers.tpl
## NOTE: To enable the grafana.ini must be configured with auth.ldap.enabled
## ref: http://docs.grafana.org/installation/configuration/#auth-ldap
## ref: http://docs.grafana.org/installation/ldap/#configuration
ldap:
enabled: false
# `existingSecret` is a reference to an existing secret containing the ldap configuration
# for Grafana in a key `ldap-toml`.
existingSecret: ""
# `config` is the content of `ldap.toml` that will be stored in the created secret
config: ""
# config: |-
# verbose_logging = true
# [[servers]]
# host = "my-ldap-server"
# port = 636
# use_ssl = true
# start_tls = false
# ssl_skip_verify = false
# bind_dn = "uid=%s,ou=users,dc=myorg,dc=com"
## Grafana's SMTP configuration
## NOTE: To enable, grafana.ini must be configured with smtp.enabled
## ref: http://docs.grafana.org/installation/configuration/#smtp
smtp:
# `existingSecret` is a reference to an existing secret containing the smtp configuration
# for Grafana.
existingSecret: ""
userKey: "user"
passwordKey: "password"
## Sidecars that collect the configmaps with specified label and stores the included files them into the respective folders
## Requires at least Grafana 5 to work and can't be used together with parameters dashboardProviders, datasources and dashboards
sidecar:
image: kiwigrid/k8s-sidecar:0.1.20
imagePullPolicy: IfNotPresent
resources: {}
# limits:
# cpu: 100m
# memory: 100Mi
# requests:
# cpu: 50m
# memory: 50Mi
# skipTlsVerify Set to true to skip tls verification for kube api calls
# skipTlsVerify: true
dashboards:
enabled: false
SCProvider: true
# label that the configmaps with dashboards are marked with
label: grafana_dashboard
# folder in the pod that should hold the collected dashboards (unless `defaultFolderName` is set)
folder: /tmp/dashboards
# The default folder name, it will create a subfolder under the `folder` and put dashboards in there instead
defaultFolderName: null
# If specified, the sidecar will search for dashboard config-maps inside this namespace.
# Otherwise the namespace in which the sidecar is running will be used.
# It's also possible to specify ALL to search in all namespaces
searchNamespace: null
# provider configuration that lets grafana manage the dashboards
provider:
# name of the provider, should be unique
name: sidecarProvider
# orgid as configured in grafana
orgid: 1
# folder in which the dashboards should be imported in grafana
folder: ''
# type of the provider
type: file
# disableDelete to activate a import-only behaviour
disableDelete: false
datasources:
enabled: false
# label that the configmaps with datasources are marked with
label: grafana_datasource
# If specified, the sidecar will search for datasource config-maps inside this namespace.
# Otherwise the namespace in which the sidecar is running will be used.
# It's also possible to specify ALL to search in all namespaces
searchNamespace: null
2. 설치 시 제공되는 데이터
NAME: air-grafana
LAST DEPLOYED: Tue Dec 10 05:36:32 2019
NAMESPACE: monitoring
STATUS: DEPLOYED
RESOURCES:
==> v1/ClusterRole
NAME AGE
air-grafana-clusterrole 0s
==> v1/ClusterRoleBinding
NAME AGE
air-grafana-clusterrolebinding 0s
==> v1/ConfigMap
NAME AGE
air-grafana 0s
air-grafana-test 0s
==> v1/Deployment
NAME AGE
air-grafana 0s
==> v1/Pod(related)
NAME AGE
air-grafana-9f7c5458d-jbsf2 0s
==> v1/Role
NAME AGE
air-grafana-test 0s
==> v1/RoleBinding
NAME AGE
air-grafana-test 0s
==> v1/Secret
NAME AGE
air-grafana 0s
==> v1/Service
NAME AGE
air-grafana 0s
==> v1/ServiceAccount
NAME AGE
air-grafana 0s
air-grafana-test 0s
==> v1beta1/PodSecurityPolicy
NAME AGE
air-grafana 0s
air-grafana-test 0s
==> v1beta1/Role
NAME AGE
air-grafana 0s
==> v1beta1/RoleBinding
NAME AGE
air-grafana 0s
NOTES:
1. Get your 'admin' user password by running:
kubectl get secret --namespace monitoring air-grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo
2. The Grafana server can be accessed via port 80 on the following DNS name from within your cluster:
air-grafana.monitoring.svc.cluster.local
Get the Grafana URL to visit by running these commands in the same shell:
export NODE_PORT=$(kubectl get --namespace monitoring -o jsonpath="{.spec.ports[0].nodePort}" services air-grafana)
export NODE_IP=$(kubectl get nodes --namespace monitoring -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT
3. Login with the password from step 1 and the username: admin
#################################################################################
###### WARNING: Persistence is disabled!!! You will lose your data when #####
###### the Grafana pod is terminated. #####
#################################################################################2. 설치확인

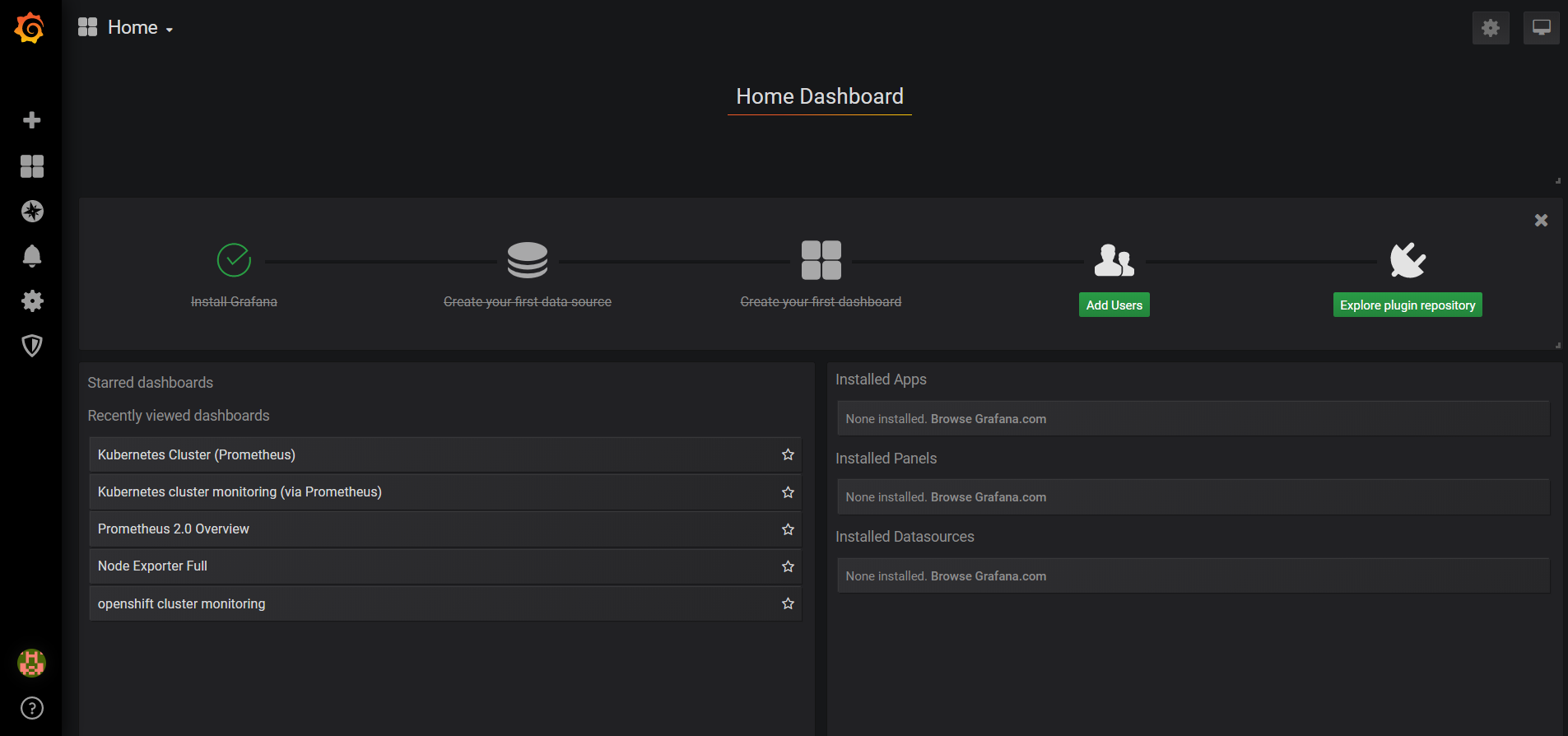

브라우저에서 ip:port로 접근했을 때 아래와 같이 연결되면 정상 동작하는 것입니다.
'Infra System' 카테고리의 다른 글
| Resource Server Setting at Prototype app (0) | 2020.10.14 |
|---|---|
| Prometheus와 Grafana 연동 - Web UI Dashboard (0) | 2020.10.14 |
| Prometheus install - Web UI Dashboard (0) | 2020.10.14 |
| Authentication Server - Outer Architecture (0) | 2020.10.14 |
| Api-gateway Server - Outer Architecture (0) | 2020.10.14 |
댓글
